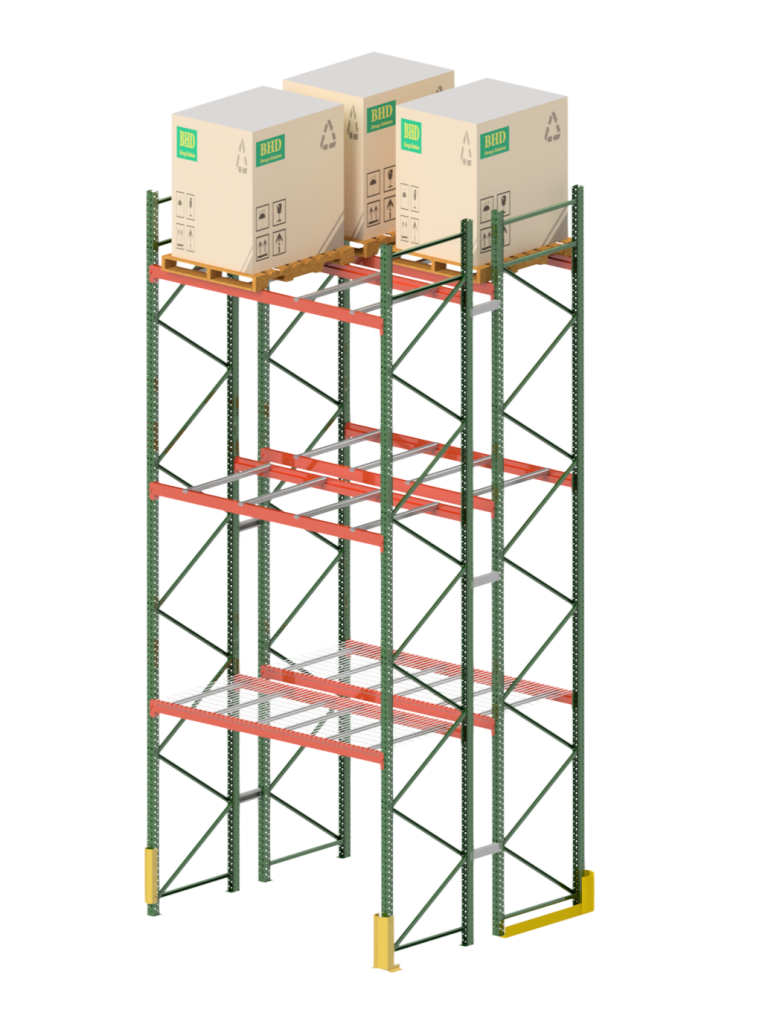

American Standard Teardrop Pallet Rack
Product Introduction
The Teardrop Pallet Rack is a warehouse racking system designed with teardrop-shaped holes on the uprights. This is one of the most common American standard pallet rack systems, recognized for its quick assembly, easy adjustability, and expandability.
The design of the vertical teardrop pallet rack plays a crucial role in the overall structure, making beam installation and removal simpler while providing maximum flexibility in inventory management and warehouse storage.
BHD supplies Teardrop Pallet Rack in a wide range of sizes, thicknesses, and high load capacities, meeting diverse storage needs from small warehouses to large logistics centers. In particular, BHD’s standardized teardrop beam-to-column connection is engineered for seamless compatibility with other teardrop rack systems on the market. This enables businesses to easily and cost-effectively expand or upgrade their warehouse facilities.
KEY FEATURES OF TEARDROP PALLET RACK
- Teardrop Design: The Teardrop Pallet Rack features teardrop-shaped holes on the uprights. This design allows beams to be installed quickly without the need for specialized tools. As a result, businesses can significantly reduce labor costs while easily adjusting beam levels to accommodate their warehouse storage needs.
- High Strength & Load Capacity: Pallet rack is manufactured from high-quality industrial steel and processed through a precise roll-forming procedure. This ensures the system can handle higher load capacities while maintaining long-term stability and safety.
- Fast Installation: BHD designs the beam connectors to lock securely into the uprights with spring lock or spring pins, enabling easy installation and removal. This provides a key advantage over traditional pallet racks that require bolts or additional hardware for assembly.
- Durable Finish: The entire rack surface is coated with an electrostatic powder finish, enhancing resistance to oxidation and preserving its appearance over time, even in harsh warehouse environments.
- Custom Configurations: The pallet rack can be customized in terms of height, depth, and load capacity to meet specific application requirements. This flexibility allows businesses of all sizes—from small warehouses to large distribution centers—to address diverse storage needs.
MAIN COMPONENTS
BOLTED-TYPE FRAME

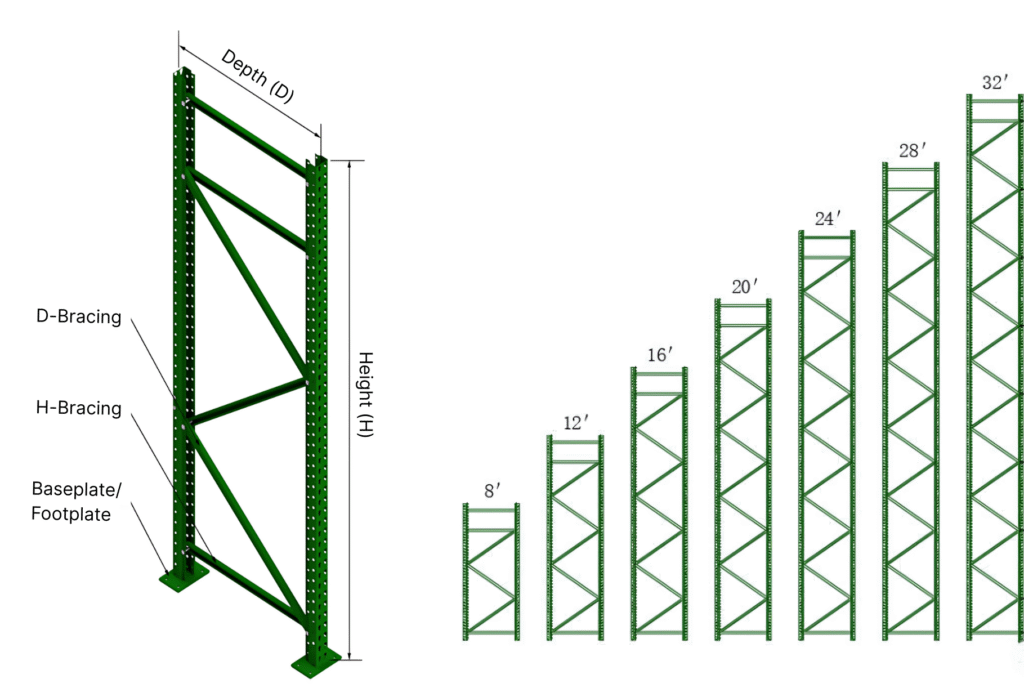

Composition: The frame consists of uprights, horizontal and diagonal bracings, bolts, spacers, and baseplates (either welded or bolted types). Standard depths are 36″, 42″, and 48″.
Key Features of the Teardrop Pallet Racking System: The bracing system of the pallet rack is securely fastened to the uprights with specialized bolts, creating a complete racking frame directly at the installation site. All components are neatly packaged to facilitate transportation and minimize the risk of damage during handling.

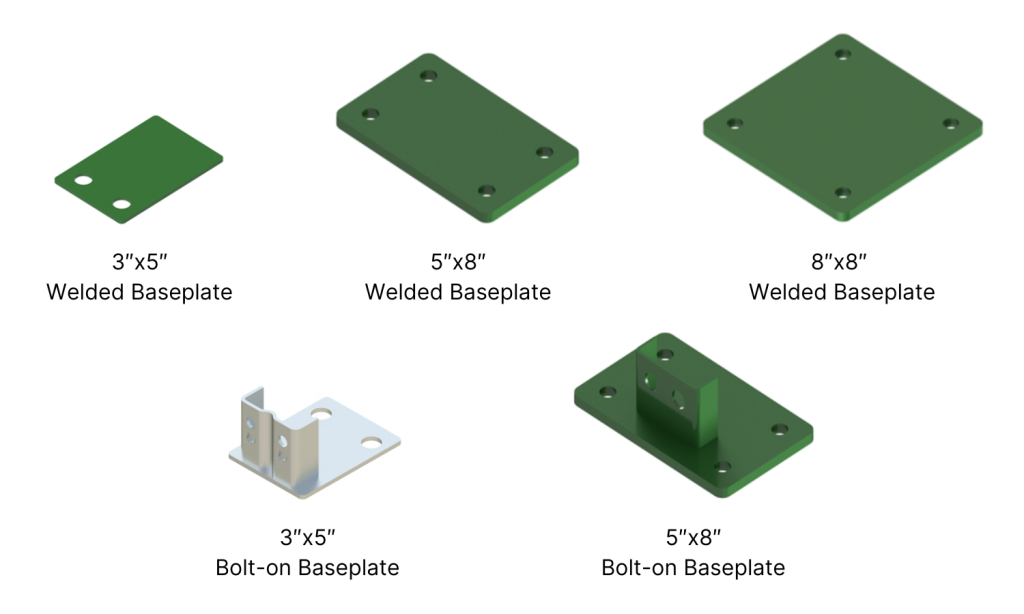

In addition, the baseplate is designed to anchor the uprights to the floor, ensuring high stability and proper load distribution. Depending on their needs and installation conditions, businesses can choose either welded baseplates or bolt-on baseplates.
| Frame Loading Capacity (Lbs) | ||||
| First Beam Level | 3″×3″×14Ga (1.9mm) | 3″×3″×13Ga (2.3mm) | 3″×3″×12Ga (2.5mm) | |
| (mm) | (inch) | |||
| 1219.2 | 48 | 21,780 | 26,180 | 28,380 |
STEP BEAM
Composition: Made of an integrated P-type step beam with rivet-style brackets welded at both ends.
Length: Standard lengths are 96″, 108″, 120″, and 144″, with a tolerance of ±0.5mm.
Common Sizes:
- 96″×3″×16GA (1,986 Lbs)
- 96″×4″×16GA (4,027 Lbs)
- 96″×4.5″×16GA (5,216 Lbs)
- 144″×5″×16GA (3,173 Lbs)
- 144″×6″×14GA (6,337 Lbs)

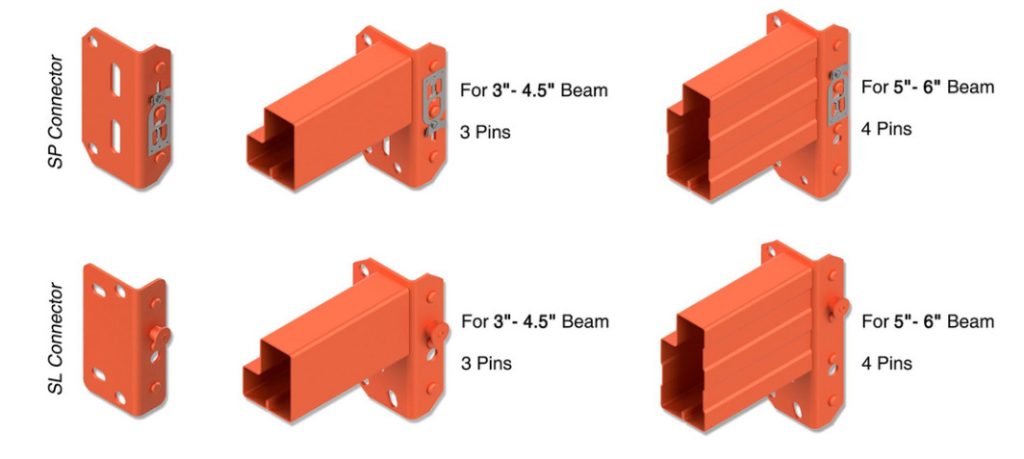

Safety Feature: Brackets are equipped with SP or SL safety pins to ensure a secure connection between the beam and upright.
RACK ACCESSORIES

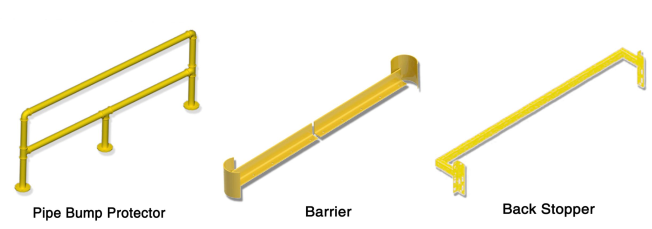

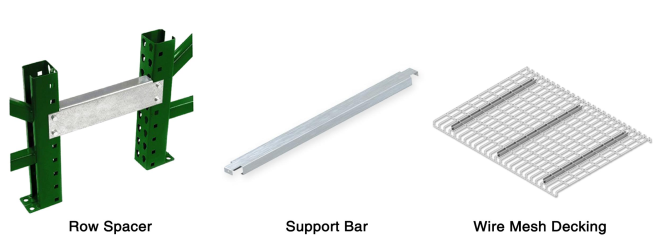

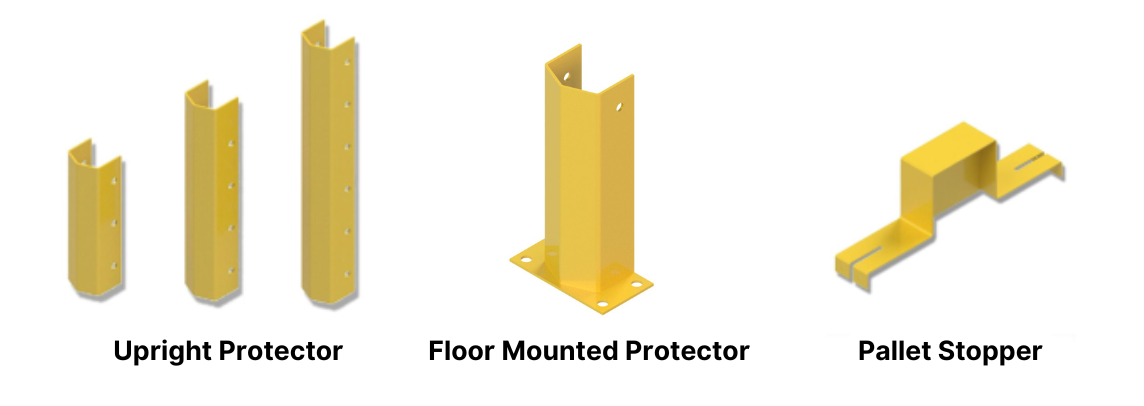

In addition to our American standard teardrop pallet rack, we also develop pallet rack accessories to improve efficiency and extend the lifespan of our pallet rack systems. These accessories are designed with a robust structure, simple installation, strong load-bearing capacity, and flexible customization options to meet the practical needs of every business.
SYSTEM OPTIONS
- Height, Depth, and Width: Fully customizable based on warehouse layout and loading needs.
- Surface Finish: Standard powder-coated finish/Galvanized
PACKAGING & LOADING

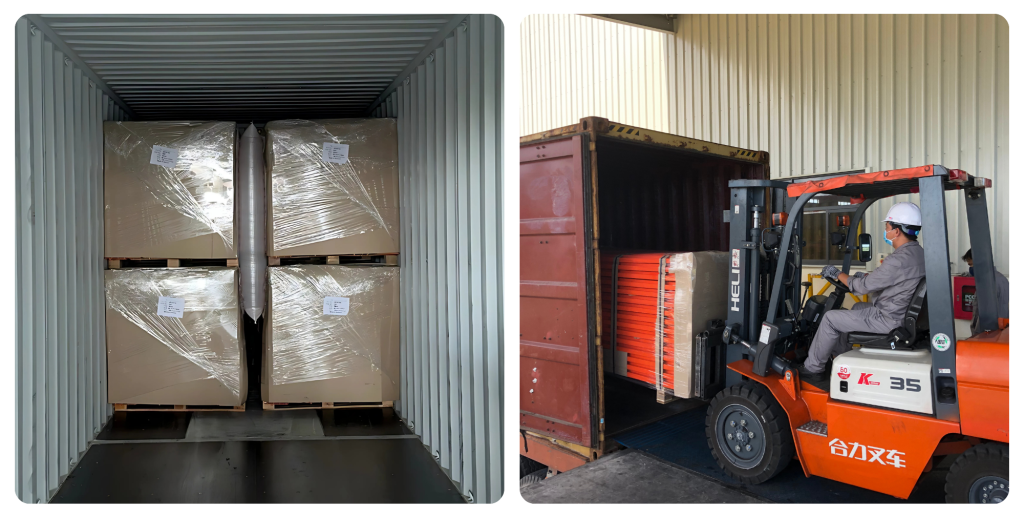

Our packaging and loading process is carefully crafted to ensure every product arrives safely, securely, and ready for installation.

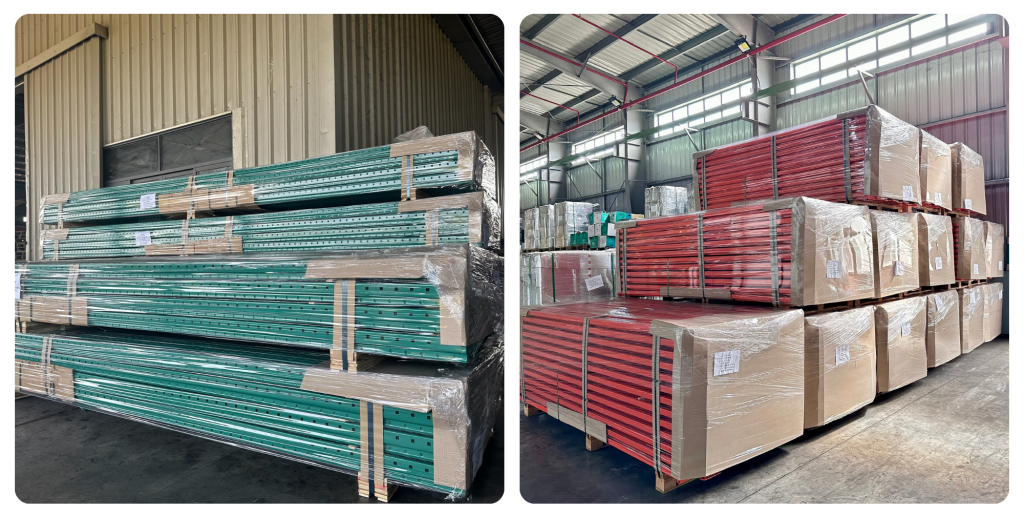

Our Packaging Materials Include:
- Corrugated Paper
- Carton Boxes
- Crossties & Pallets
- Angle Steel
- Plastic Film
- Steel Ties
- Airbags
BHD is committed to providing professional packaging services for pallet rack, ensuring that goods are always delivered safely, promptly, and in strict accordance with established procedures. With our optimized packaging solutions, we help businesses save time, reduce the risk of damage during the transportation of pallet racks and other goods, and improve overall management and distribution efficiency.
WHY CHOOSE BHD VIETNAM RACKING FACTORY?
- Experienced Manufacturer – With years of expertise in the global racking industry, BHD confidently delivers optimized storage solutions tailored to diverse industries.
- Aspiration to Go Global – With a manufacturing facility in Vietnam and distribution warehouses in the United States and Australia, we ensure fast, reliable shipping services that meet the needs of customers worldwide.
- Trusted Partner – BHD is committed to building long-term relationships with clients through professional services, customized racking solutions, and consistent product quality that meets international standards.
- Export-Oriented Focus – We specialize in producing export-grade storage racks, with in-depth knowledge of international logistics, container optimization, and global compliance, helping businesses reduce costs and operate more efficiently.
