Cantilever Rack
Product Introduction
At BHD Vietnam, we specialize in manufacturing and supplying high-quality cantilever rack systems, engineered from premium steel structures to deliver exceptional load-bearing capacity for ultra-heavy and oversized goods. This solution enables businesses to optimize warehouse storage space efficiently for items such as timber, steel, pipes, and other large-sized materials.
Intelligently and flexibly designed, the BHD cantilever rack provides durability and easy handling with forklifts, while allowing storage configurations to be adjusted to specific needs. In particular, these cantilever rack systems are ideally suited for industrial and commercial warehouses, ensuring stable performance and safety even in demanding working environments.
What Is a Structural Cantilever Rack?
A cantilever rack is a specialized storage system designed with horizontal arms that extend outward from a central upright column, eliminating the need for front support. With its open structure, this type of racking is particularly suitable for handling and storing long, heavy, and bulky materials such as timber, steel pipes, metal sheets, and industrial tubing.
What distinguishes the cantilever rack from other storage systems is its construction from premium hot-rolled steel, which provides superior durability, a high load-bearing capacity, and excellent resilience in demanding storage environments. This makes it an ideal solution for businesses seeking to optimize storage space for materials that traditional pallet rack cannot accommodate.
KEY FEATURES
Cantilever rack is the optimal storage solution for businesses that need to manage long-term, heavy, and bulky goods. With its unique design, this type of racking offers several outstanding advantages, such as:
- Dual-sided access: Cantilever racks allow forklifts to retrieve goods from both sides, optimizing loading and unloading processes while improving aisle efficiency.
- Perfect solution for long or bulky items: Specifically designed to store industrial materials such as timber, steel pipes, water pipes, furniture, fabric rolls, and other oversized materials.
- Open-front design: Eliminates front columns, reducing the risk of forklift collisions and saving time during loading and unloading.
- Adjustable height options: Uprights can be adjusted up to 32 feet, providing flexibility to meet diverse storage needs in industrial environments.
- Heavy-duty steel construction: Manufactured from high-quality steel, ensuring high load capacity, long-lasting durability, and safety in demanding work conditions.
Cantilever racks not only optimize warehouse space but also enhance operational productivity, making them an ideal choice for businesses in manufacturing, construction, and logistics.

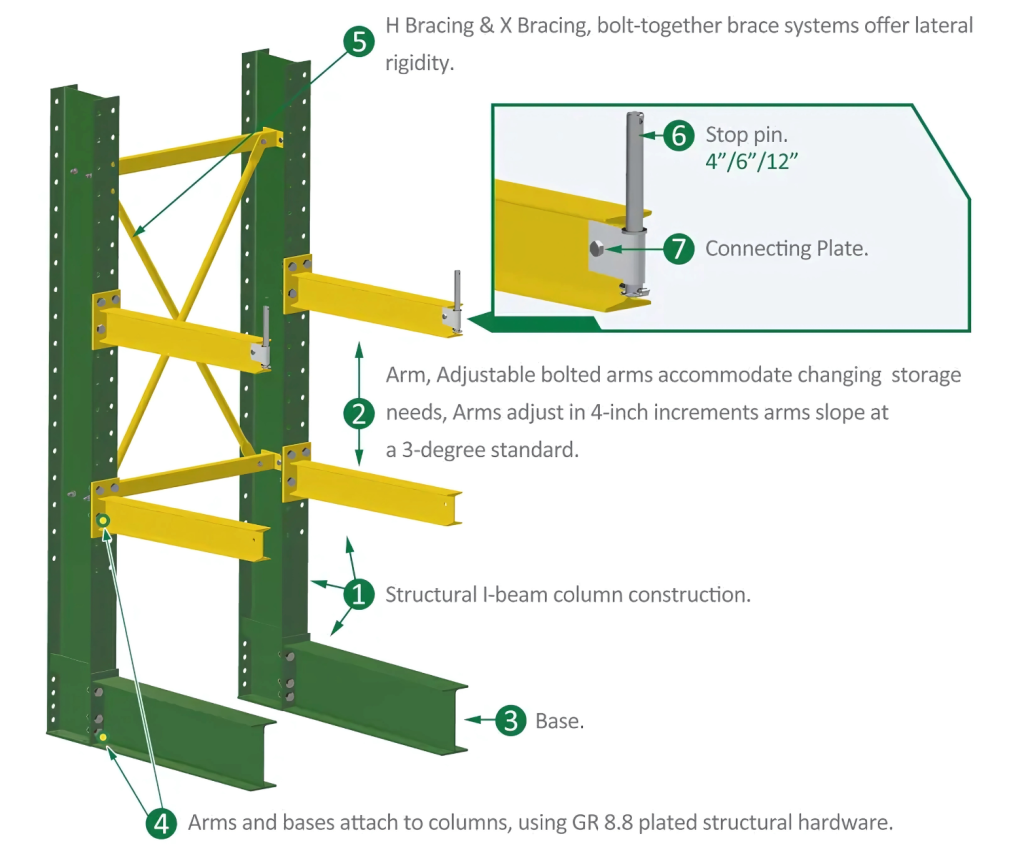

MAIN COMPONENTS
- The structural cantilever columns are manufactured using W9.7″, W11.7″ section and base section is the same as column section;
- Arms are produced using profile 4″, profile 4.7″ or profile 5.5″;
- All cantilever columns are vertically adjustable on 4″ centers.
For W9.7″ Upright:
| 248x124x5x8 (W9.7″) | Upright Loading Capacity (Lbs) | ||||
| Height | Length | ||||
| 36″ | 40″ | 48″ | 60″ | 72″ | |
| 8′ | 14,300 | 14,300 | 14,300 | 14,300 | 13,640 |
| 12′ | 12,980 | 12,980 | 12,980 | 11,880 | 9,900 |
| 16′ | 12,760 | 12,760 | 11,660 | 9,460 | 7,700 |
| 20′ | 12,320 | 11,660 | 9,680 | 7,700 | 6,600 |
For W11.7″ Upright:
| 298×149×5.5×8 (W11.7″) | Upright Loading Capacity (Lbs) | ||||
| Height | Length | ||||
| 36″ | 40″ | 48″ | 60″ | 72″ | |
| 28′ | 9,100 | 8,180 | 6,820 | 5,460 | 4,550 |
For Arm Loading Capacity:
100x68x4.5 (4″) – L48″: 2,640 Lbs
120x74x5 (4.7″) – L48″: 3,960 Lbs
OPTIONAL FEATURES

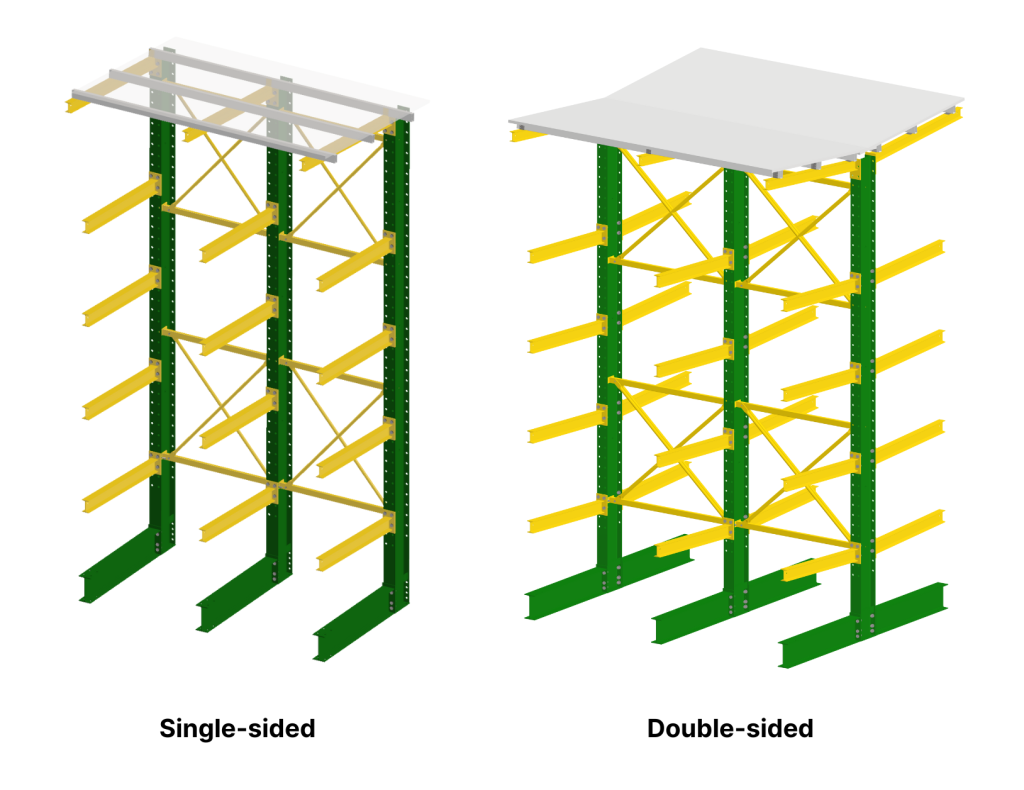

- Single-and double-sided systems
- Narrow-aisle configurations with guardrails for side-load forklifts
- Stop pins for arms and bases – bolted
POWDER COATING COLOR OPTION
PACKAGING & LOADING
Our commitment to professional packaging skills goes beyond merely ensuring safe delivery; it also serves to streamline processes, saving time and minimizing the risk of damage during loading and unloading operations.
WHY CHOOSE BHD VIETNAM RACKING FACTORY?
- Experienced Manufacturer – With years of expertise in the global racking industry, BHD confidently delivers optimized storage solutions tailored to diverse industries.
- Aspiration to Go Global – With a manufacturing facility in Vietnam and distribution warehouses in the United States and Australia, we provide fast and reliable shipping services that meet the needs of customers worldwide.
- Trusted Partner – BHD is committed to building long-term relationships with clients through professional services, customized racking solutions, and consistent product quality that meets international standards.
- Export-Oriented Focus – We specialize in producing export-grade storage racks, with in-depth knowledge of international logistics, container optimization, and global compliance, helping businesses reduce costs and operate more efficiently.
