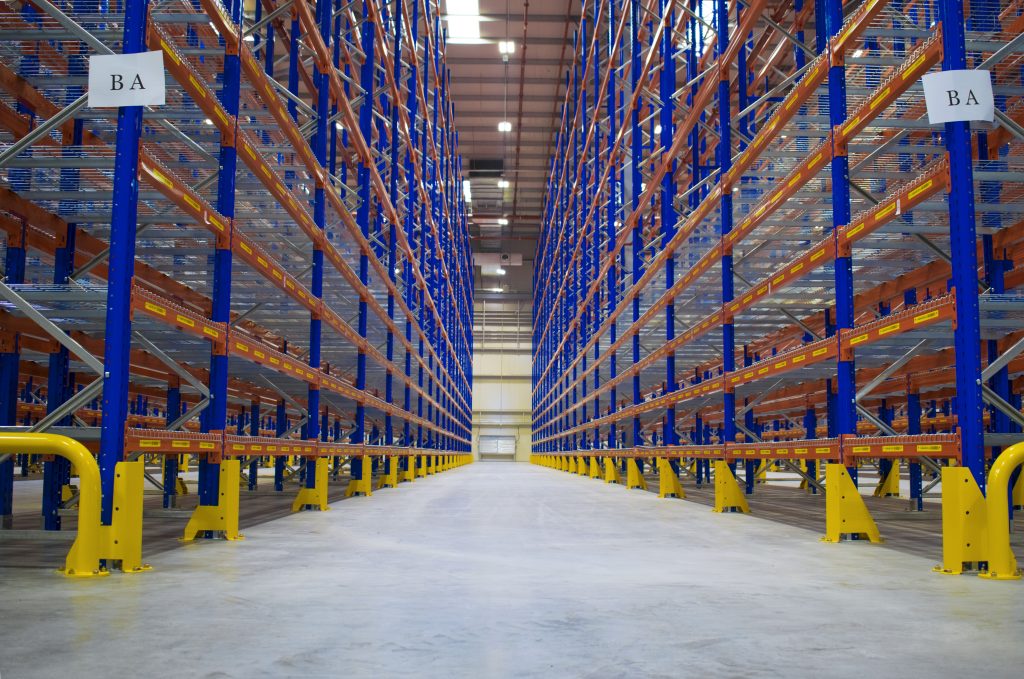

As logistics and e-commerce continue to expand, making better use of available warehouse space has become increasingly important. This pallet racking installation case study demonstrates how a structured pallet storage solution can help businesses address common warehouse challenges, improve material flow, and create a more efficient storage environment.

Before implementation, the warehouse faced several operational difficulties, including inefficient use of available space, time-consuming inbound and outbound processes, limited inventory visibility, and challenges in scaling storage capacity as demand increased.

After assessing the warehouse layout, product characteristics, storage requirements, and operational flow, BHD developed a storage strategy focused on maximizing space utilization while maintaining accessibility and safety. The resulting solution combined appropriate pallet racking systems, optimized warehouse layout, inventory management technology, and automation.

Pallet Racking Installation Case Study: Project Objectives

The primary objective was to increase storage capacity without expanding the existing warehouse footprint. The project targeted a potential 40–60% increase in storage capacity, while also improving material flow, reducing operational risks, and supporting real-time inventory management.

Rather than simply adding more racks, the project considered the relationship between storage density, aisle configuration, pallet access, load capacity, and warehouse movement. This approach allowed the storage system to support both current operations and future growth.

Pallet Racking Installation Case Study: Selecting the Right System

Different warehouse zones have different storage requirements. For this reason, the solution incorporated several pallet racking configurations instead of relying on a single system.

Selective Pallet Rack was recommended for areas containing a wide range of SKUs and products requiring frequent access. Its flexible configuration allows operators to access individual pallets efficiently.

Drive-in and Drive-through Rack systems were used for homogeneous products where storage density was a higher priority. These systems make better use of available floor space by reducing the number of operating aisles.

Double Deep Rack was introduced in central storage areas to increase storage density while maintaining practical pallet handling capabilities with suitable forklifts.

In this pallet racking installation case study, combining different rack types according to product characteristics and turnover frequency created a more balanced storage environment, rather than maximizing density at the expense of accessibility.

Pallet Racking Installation Case Study: Warehouse Layout

An effective racking system must work together with the overall warehouse layout. In this pallet racking installation case study, the inbound area was positioned close to frequently replenished storage zones, while the main storage area was organized according to load simulations and material flow patterns.

The outbound area was positioned near shipping doors to support smoother movement between storage and dispatch operations. Supporting spaces such as offices and maintenance areas were also arranged to maintain a safe and organized working environment.

According to the case study, this structured layout contributed to a 20–30% reduction in operational time. Load inspections, chemical anchor bolts, and scheduled maintenance were also incorporated to support rack stability and long-term operational safety.

Smart Warehouse Management and Automation

Modern warehouse storage increasingly relies on digital tools to improve visibility and accuracy. The solution incorporated Warehouse Management System (WMS) software to monitor pallet locations and inventory in real time.

Additional technologies included:

• IoT sensors for monitoring temperature, humidity, and rack loads
• Barcode and RFID scanners for faster product identification
• Warehouse automation to reduce repetitive manual operations
• Digital monitoring to improve inventory accuracy

The case study also describes different levels of warehouse automation, from semi-automated conveyor and lifting equipment to partially automated systems using robots and sensors, as well as fully automated operations.

Integrating these technologies with the pallet racking system creates greater visibility across inbound, storage, and outbound processes while reducing manual errors.

Key Benefits of the Pallet Racking Installation

The completed solution delivered several important operational advantages.

Higher Storage Capacity

The pallet racking layout was designed to utilize both available floor space and warehouse height more effectively. According to the case study, storage capacity increased by approximately 50–60% compared with traditional warehouse arrangements.

This means businesses can accommodate additional inventory without immediately requiring a larger warehouse footprint.

Improved Operational Efficiency

The combination of smart pallet racks, warehouse management software, and optimized material flow reduced inbound and outbound processing time by approximately 25–30% in the case study. Pallet positioning and IoT monitoring also supported faster product retrieval and fewer inventory errors.

Enhanced Safety and Stability

Safety was incorporated into the storage design through load inspections, chemical anchor bolts, and scheduled maintenance. These measures help reduce the risk of rack instability, collisions, and product damage during warehouse operations.

Greater Scalability

A well-planned warehouse storage system provides businesses with greater flexibility as inventory volumes and operational requirements change. Selecting the appropriate rack configuration for each warehouse zone allows the storage system to adapt more effectively to future needs.

Better Inventory Visibility

WMS, barcode, RFID, and IoT technologies provide greater visibility over pallet locations and storage conditions. This supports more accurate inventory management and helps reduce errors during stocktaking.

Key Considerations Before Installing Pallet Racking

A successful warehouse storage project starts with proper planning. Businesses should evaluate warehouse dimensions, product types, pallet weights, storage turnover, forklift requirements, and future capacity needs before selecting a racking system.

The case study highlights several important considerations:

• Assess warehouse size, load requirements, and product characteristics
• Select rack types based on actual operational needs
• Optimize aisle width and material flow
• Consider WMS, smart sensors, and automation
• Work with an experienced racking manufacturer to reduce design risks
• Monitor performance after installation using operational KPIs

These factors help ensure that a pallet racking investment delivers measurable improvements rather than simply adding storage equipment.

A Practical Approach to Modern Warehouse Storage

This pallet racking installation case study demonstrates that warehouse improvement involves much more than installing racks. The most effective solutions combine suitable racking configurations, intelligent space planning, safety measures, inventory technology, and efficient material flow. For more information about material handling and warehouse solutions, explore resources from MHI.

By applying these principles, businesses can increase storage capacity, improve operational efficiency, strengthen safety, and create a scalable warehouse environment capable of supporting future growth.

BHD Vietnam provides a range of warehouse storage systems, including American Standard Teardrop Pallet Rack, Cantilever Rack, Australian Standard Heavy-Duty Pallet Rack, Wire Mesh Decking, and rack accessories, supporting different warehouse applications and storage requirements.

For businesses planning a new warehouse or upgrading an existing storage facility, choosing the right racking system and working with an experienced manufacturer can make a significant difference in long-term warehouse performance.

Contact BHD Vietnam today at sales@palletrack.vn or jrt@palletrack.vn to discuss your warehouse storage requirements and find the right racking solution for your operation.
