Industrial Cantilever Racks – Efficient Storage for Long Materials, Steel Pipes, and Wood

Introduction

In modern industrial warehouses, the demand for storing long materials, steel pipes, or wooden beams is increasing. Cantilever racks have become an optimal solution due to their high load capacity, flexibility, and easy warehouse arrangement. Unlike traditional pallet racks, cantilever racks allow storage of long, bulky materials while maintaining organization and safety.

BHD – Palletrack.vn shares an in-depth perspective on applying cantilever racks in scientific warehouse layouts, helping businesses maximize space, reduce operating costs, and improve the management efficiency of long materials, steel pipes, and wood.

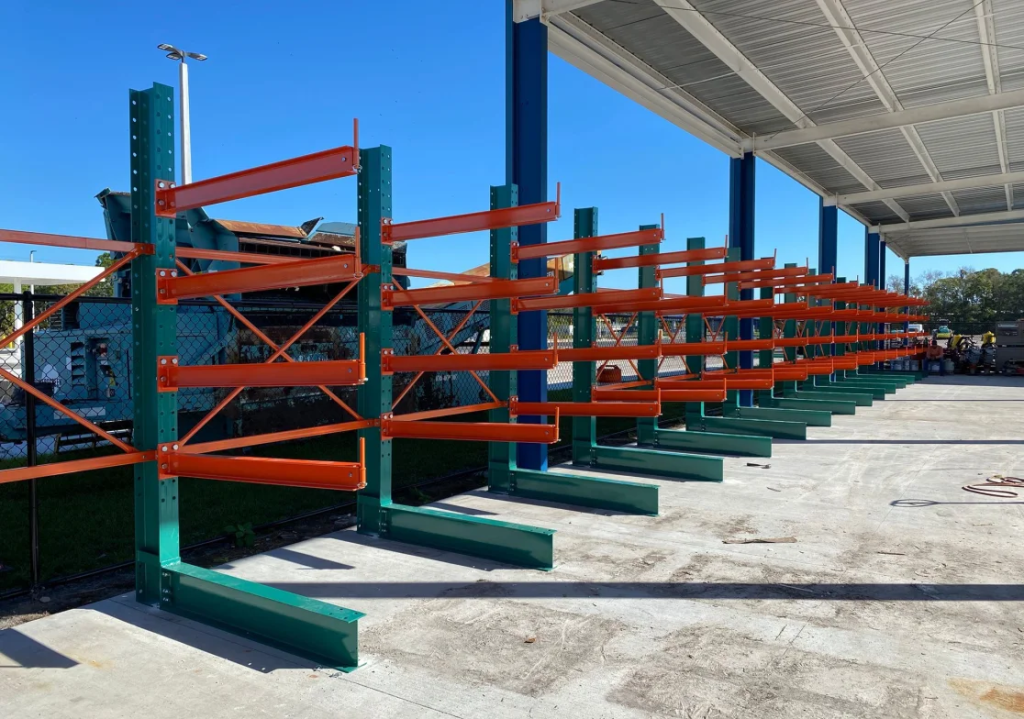

1. Structure and Operating Principle of Cantilever Racks

A standard cantilever rack system typically consists of several key components, each contributing to optimized storage capacity and ensuring safety in warehouse design.

Upright Columns

The upright columns of a cantilever rack are made from thick, high-strength steel, capable of supporting the full weight of long materials such as steel pipes, wooden beams, or long pallets. The columns are reinforced to prevent wobbling or tilting when heavy materials are placed, while evenly distributing the load to the base for maximum stability.

Horizontal Arms

The horizontal arms are welded or bolted securely to the upright columns. They bear the direct load of the materials and provide clearance underneath for forklifts or pallets to move easily. With varied lengths and load capacities, the arms allow storage of long materials without sagging or bending, while reducing the risk of collisions between pallets or steel pipes. These arms are crucial for the efficiency of long material storage.

Base Feet

The base of the industrial cantilever rack is wide and sturdy, designed to distribute the load to the floor, increasing overall system stability even when heavy materials are placed at higher levels. The base is typically anchored to the floor with bolts to prevent sliding or shifting during operation.

Protective Accessories

Accessories such as guardrails, mesh panels, or safety barriers help minimize collision risks from forklifts or falling materials into walkways. These are critical for warehouse safety, reducing damage to goods and protecting operators. It is essential that these protective components are installed correctly and maintained rigorously, as they serve as the first line of defense against operational hazards and significantly extend the lifespan of the entire racking system.

Operating Principle of Cantilever Racks

Long materials such as steel pipes, wooden beams, or long pallets are placed directly on the horizontal arms. The upright columns bear the main load while the arms distribute the weight evenly across the entire frame, increasing rack longevity and operational safety. This design allows horizontal or vertical storage of materials and flexible adjustment of arm spacing to accommodate different types of long materials, meeting the demands of modern storage warehouses.

2. Applications of Cantilever Racks

Cantilever racks are suitable for a variety of warehouse types:

Long Material Storage

Cantilever racks are an ideal solution for storing long aluminum, steel, or construction materials without cutting them into smaller pieces. Thanks to the sturdy arm design, long materials can be placed straight, minimizing the risk of bending or damage. This not only preserves materials effectively but also saves space and makes it easier for staff to handle or organize items.

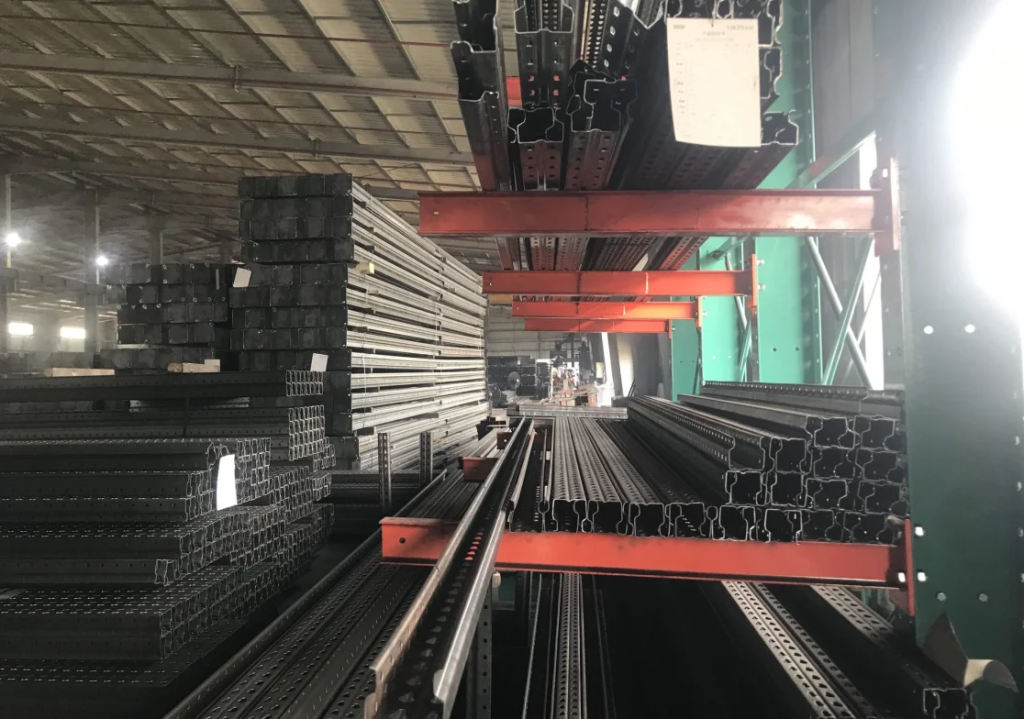

Pipe Storage (Pipe Rack)

In steel pipe warehouses, cantilever racks allow pipes to be categorized by diameter and length, enabling fast and safe loading and unloading. The arms and upright columns are designed to withstand concentrated loads from heavy pipes, while protective accessories reduce collisions and falling materials. This system improves operational efficiency and minimizes risks for employees.

Timber Storage

Long wooden beams, pallets, or engineered wood panels placed on cantilever racks are organized in layers, reducing the risk of bending or damage. The system allows neat arrangement, easy retrieval by size or wood type, and maximizes warehouse depth utilization.

Heavy Industrial Warehouses

Implementing cantilever racks in these warehouse types ensures continuous operations, reduces handling time, and optimizes vertical and horizontal space. The flexible design allows adjustment of arm spacing, as well as expansion or relocation of racks without affecting the entire system.

=> Deploying cantilever racks helps warehouses operate smoothly, reduce handling time, and make the most of available vertical and horizontal space.

3. Benefits of Using Cantilever Racks

Improved Operational Efficiency

Thanks to their simple and sturdy design, employees can quickly retrieve or store long materials, reducing the risk of damage.

Optimized Space Utilization

Cantilever racks make effective use of warehouse height. Combined with other long-material or pipe storage racks, they allow storing more materials without expanding the warehouse footprint.

Enhanced Safety

The steel frame and protective accessories minimize the risk of falling materials, ensuring both rack safety and operator safety.

Easy Expansion and Adjustment

The arms can be adjusted in height or easily removed, making it convenient to reconfigure the warehouse layout or expand storage capacity.

4. Safety Standards and Maintenance for Cantilever Racks

To ensure safe operation, the following standards should be followed:

• Design Load Check: Do not exceed the maximum load capacity of the cantilever arms.
• Regular Inspections: Check bolts, welds, and anti-corrosion coatings periodically.
• Guardrails and Signage: Ensure safe movement for employees and prevent collisions.
• Periodic Certification: Follow manufacturer’s guidelines, at least once every 12 months.

BHD – Palletrack.vn emphasizes routine maintenance to extend the lifespan of racks, minimize risks, and ensure smooth warehouse operations.

Beyond these basic standards, businesses should also implement a scientific warehouse layout for cantilever racks. Organizing long materials, steel pipes, or wood by group, length, and weight maximizes space, reduces employee travel and handling time, and minimizes collision risks. Clear zoning enhances rack safety and simplifies routine maintenance.

Combined with protective accessories such as barriers, guard panels, and railings, warehouses can operate smoothly, meet modern storage trends, and optimize long-term productivity.

5. Common Types of Cantilever Racks

Welded Steel Cantilever Rack
Suitable for heavy-duty industrial warehouses with high load requirements and a need for maximum stability. The fully welded structure ensures superior rigidity and load-bearing capacity under constant stress, making it ideal for permanent installations with exceptionally heavy or bulky materials.

• Advantages: Sturdy, long lifespan, low maintenance.
• Disadvantages: Difficult to dismantle when relocating.

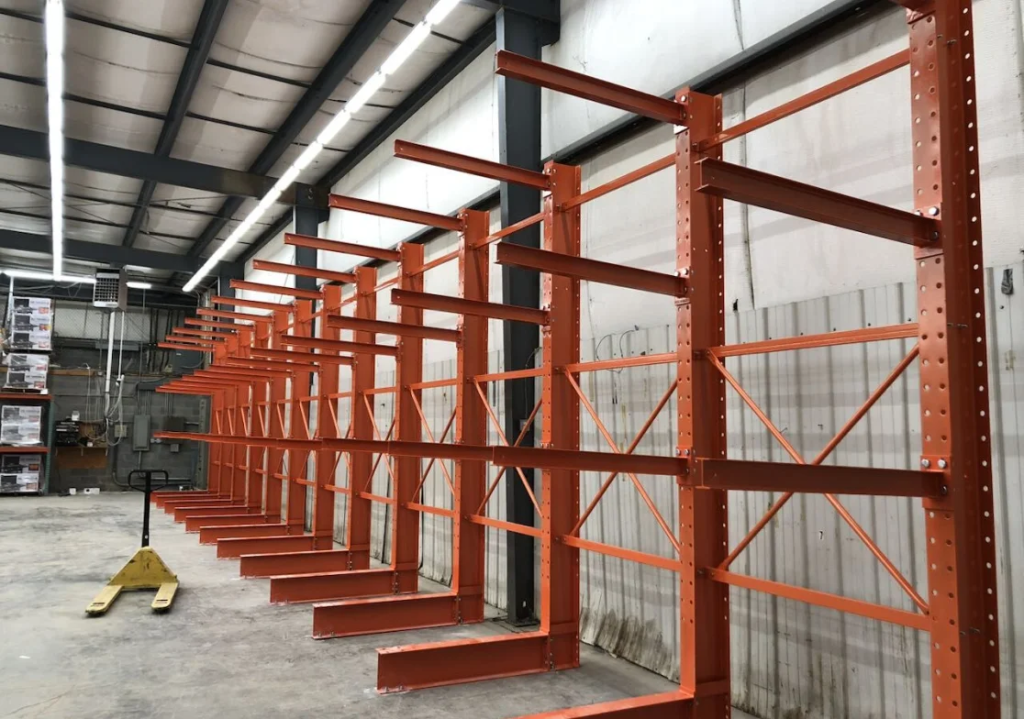

Bolted Cantilever Rack
Ideal for warehouses that require flexibility, easy assembly, and expansion. This design significantly simplifies relocation and future capacity adjustments without needing specialized welding or cutting equipment, minimizing disruption to ongoing operations.

• Advantages: Quick installation, easy to relocate.
• Disadvantages: Higher material cost compared to fixed welded racks.

Combined with Long Load Rack or Pipe Rack
Creates storage for long items, steel pipes, or timber in combination with dynamic racks. Suitable for warehouses with high-volume material flow and the need to manage multiple layers of goods.

6. Considerations for Designing and Arranging Cantilever Racks

Avoiding Mistakes in Warehouse Rack Design, attention should be paid to:

• Determine length, height, and material load before designing.
• Properly distribute support arms to balance the load.
• Select appropriate protective accessories, such as guards, mesh panels, and anchor bars.
• Ensure clear aisles and transportation routes for forklifts and staff.

Common mistakes in warehouse rack design include: not accurately determining the length, height, and load capacity of materials; uneven distribution of cantilever arms, causing concentrated loads; neglecting protective accessories such as barriers, mesh decks, or anchor bars; and failing to ensure clear aisles and convenient traffic flow. Paying attention to these points helps reduce material damage, extend rack lifespan, and ensure safe operation.

7. Optimizing for Smart Warehouse Trends

Cantilever racks are suitable for smart warehouse applications, where businesses aim to:

• Maximize storage space utilization.
• Integrate with robots or automated forklifts.
• Monitor inventory accurately and manage long-term materials efficiently.

When integrated with a smart warehouse management system, cantilever racks help:

• Increase operational efficiency.
• Reduce handling errors.
• Ensure comprehensive safety.

Cantilever racks optimize storage space, work seamlessly with automated forklifts, and allow precise monitoring of long material inventory. Integration with warehouse management systems enhances productivity, minimizes operational errors, and ensures safety for both staff and goods.

8. Importance in Modern Storage Trends

Cantilever racks are an optimal solution for modern storage trends due to the following advantages:

• Storing long materials, pipes, and timber efficiently in both height and depth.
• Easy classification and organization of materials by size or product group.
• Compatibility with high-density storage solutions and warehouse mechanization.

As a result, businesses can design flexible warehouses that adapt quickly to market changes while maintaining operational efficiency and safety.

9. Conclusion

Investing in cantilever racks not only delivers short-term efficiency but also provides long-term value for businesses. With a heavy-duty steel frame combined with protective accessories, the system enhances rack safety and lifespan while reducing the risk of material damage.

Organizing long materials, steel pipes, or timber in tiers optimizes warehouse space, increases storage density, and aligns with smart warehouse trends through integration with automated systems and precise inventory management.

Cantilever racks are also easy to maintain, disassemble, and adjust when warehouse expansion is needed, helping businesses manage warehouses efficiently, ensure safety for staff and materials, and meet modern standards for storage and operations.

Ready for the Smart Warehouse Trend with Cantilever!

Choose BHD – Palletrack.vn to get a Cantilever Rack solution designed according to industry standards, ready for integration with automation and precise inventory management.
